| Design Loads - P2894 | ||
|---|---|---|
| Part Number | Rod Size in |
Design Load lbs (kN) |
| P2894-25 | 1/4" | 150 (0.67) |
| P2894-37 | 3/8" | 350 (1.56) |
| P2894-50 | 1/2" | 400 (1.78) |
- Material: Malleable Iron
- 7/8" Maximum Flange Thickness
- Tapped Hole on Top & Bottom
Unistrut

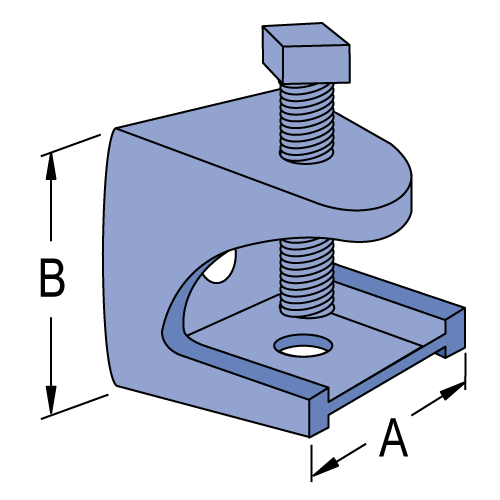

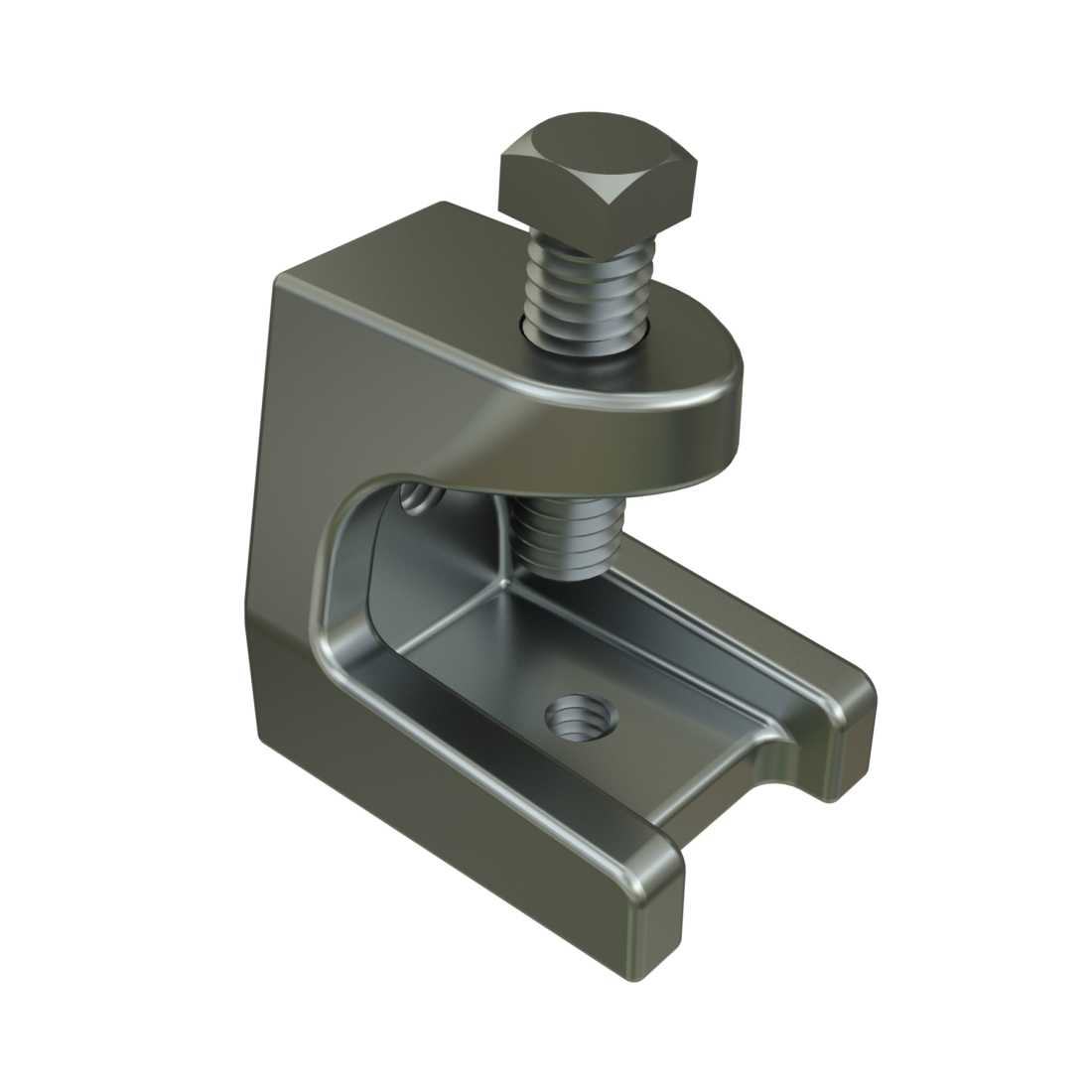

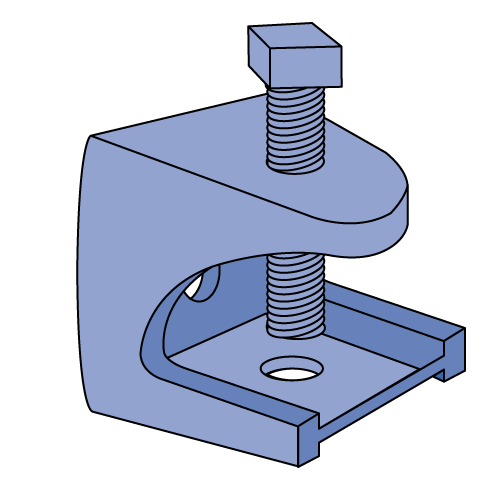

Unistrut P2894 - Beam Clamp for 1/4" Rod
Item Code:P2894-25EG
Quantity:
Features:
- Vertical Design Load: 150 to 400 lbs per clamp
- 7/8" max flange thickness
- This series is available in Electrogalvanized (EG)
Dimensions & Design Loads
Materials & Finishes
Materials & Finishes:
- Electrogalvanized (EG): Conforms to ASTM B633, Type III SC1 or SC3
