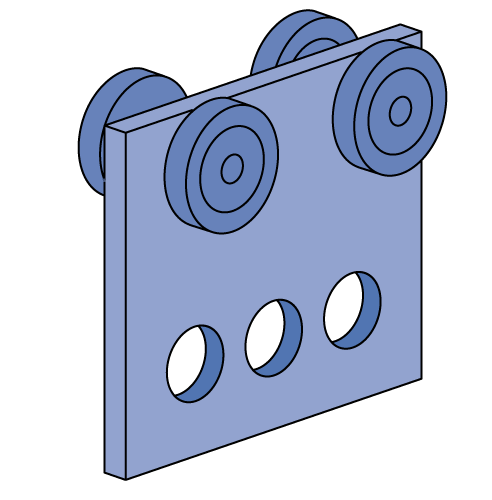

Unistrut P2950 Trolley
Unistrut P2950 - 4 Wheel Trolleys--EG
Unistrut P2950 - 4 Wheel Trolleys--EG

Unistrut

Unistrut P2950 - 4 Wheel Trolleys--EG

$27.50
Order Size:Single Piece
Quantity:

Features:

  • Design Load: 300 - 600 lbs [1.33 - 2.67 kN] per table
  • Wheel bearings should not be lubricated
  • Three mounting holes for 1/2" fasteners


Design Loads

Design Loads - P2950
Feet Per Minute
(FPM)		 Rotations Per Minute
(RPM)		 Design Load in P1000
lbs (kN)
180 600  300  (1.33)
90 300 450  (2.00)
30
 100 600  (2.67)

Notes:

  1. Design loads only apply to Unistrut brand products. Look for "UNISTRUT" on the part.
  2. Safety factor = 2.5 based on the ultimate strength of the connection when mounted to 12 gauge channel.
Specifications

General Specifications

  • Do not lubricate

Materials & Finishes

  • Electrogalvanized (EG)
  • Stainless Steel is available by request as a MTO item
 Downloads

 P2950 Cut Sheet

P2950 Trolley BIM Model
