Unistrut A1325

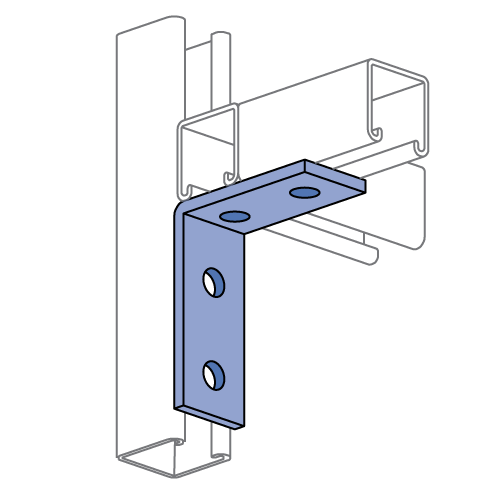

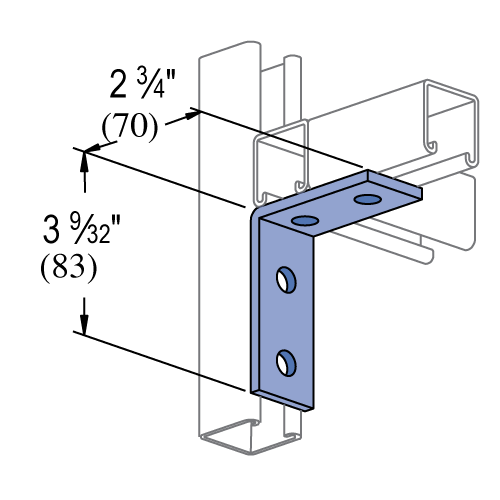

Unistrut A1325 - 4 Hole 90° Fitting (1-1/4" Series)
Unistrut A1325 - 4 Hole 90° Fitting (1-1/4" Series)

Unistrut

Unistrut A1325 - 4 Hole 90° Fitting (1-1/4" Series)

Sale price$0.00 Regular price$4.18
Sold out
Finish:Perma-Green® III
Item Code:A1325GR
Quantity:

Features:

  • Steel: ASTM A1011 SS GR 33
  • Holes for 3/8" fasteners
  • Galvanized for corrosion protection


Brands Available:

  • Unistrut



General Specifications

Standard Dimensions:

  • Hole Diameter:  13/32"  (10.3mm)
  • Hole Spacing (From End):  5/8"  (15.9mm)
  • Hole Spacing (On-Center):  1 1/2"  (38.1mm)
  • Width:  1 1/4"  (31.8mm)
  • Thickness:  3/16"  (4.8mm)


Materials & Finishes

Materials & Finishes:

  • Base Metal: Steel conforms to ASTM A1011 SS GR 33
  • Electrogalvanized (EG):  Conforms to ASTM B633, Type III SC1
  • Perma-Green (GR):  Conforms to commercial standards for powder coating



A1325 CUT SHEET PDF DOWNLOAD
