Unistrut A1036

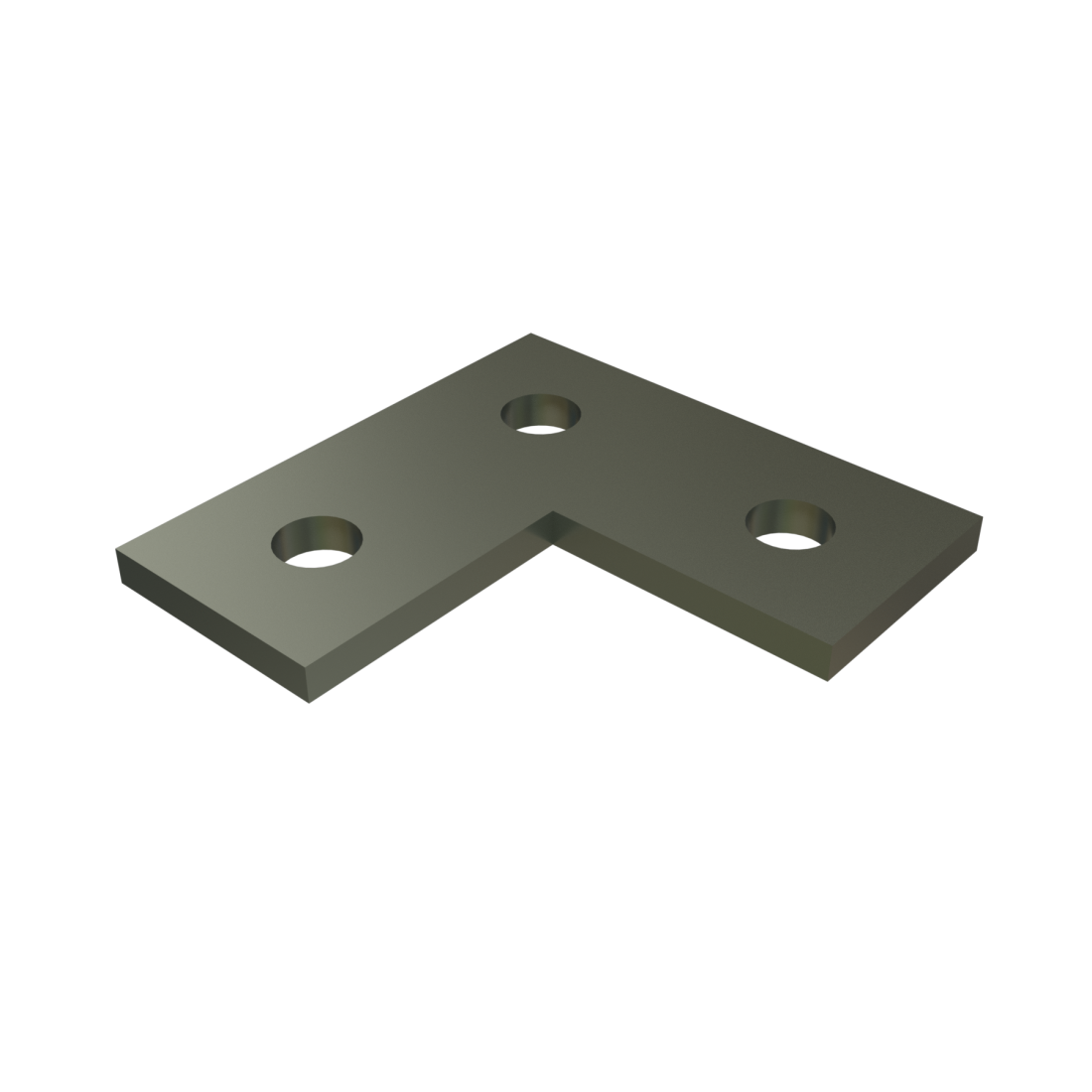

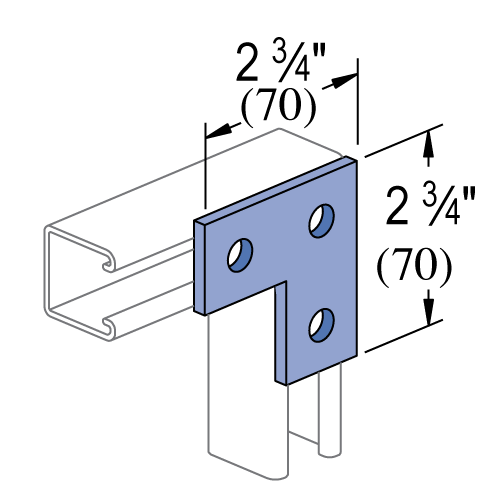

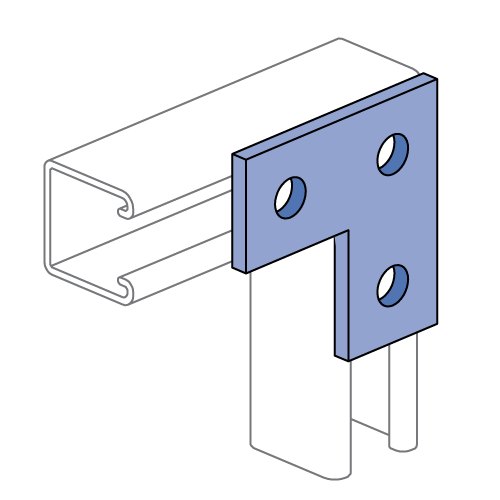

Unistrut A1036 - 3 Hole Flat Plate Fitting (1-1/4" Series)
Unistrut A1036 - 3 Hole Flat Plate Fitting (1-1/4" Series)

Unistrut

Unistrut A1036 - 3 Hole Flat Plate Fitting (1-1/4" Series)

Sale price$0.00
Sold out
Order Size:Single Piece
Quantity:

Features:

  • Steel: ASTM A1011 SS GR 33
  • Holes for 3/8" fasteners
  • Galvanized for corrosion protection


Brands Available:

  • Unistrut



General Specifications

Standard Dimensions:

  • Hole Diameter:  13/32"  (10.3mm)
  • Hole Spacing (From End):  5/8"  (15.9mm)
  • Hole Spacing (On-Center):  1 1/2"  (38.1mm)
  • Width:  1 1/4"  (31.8mm)
  • Thickness:  3/16"  (4.8mm)

Materials & Finishes

Materials & Finishes:

  • Base Metal: Steel conforms to ASTM A1011 SS GR 33
  • Electrogalvanized (EG):  Conforms to ASTM B633, Type III SC1
  • Perma-Green (GR):  Conforms to commercial standards for powder coating



A1036 CUT SHEET PDF DOWNLOAD
