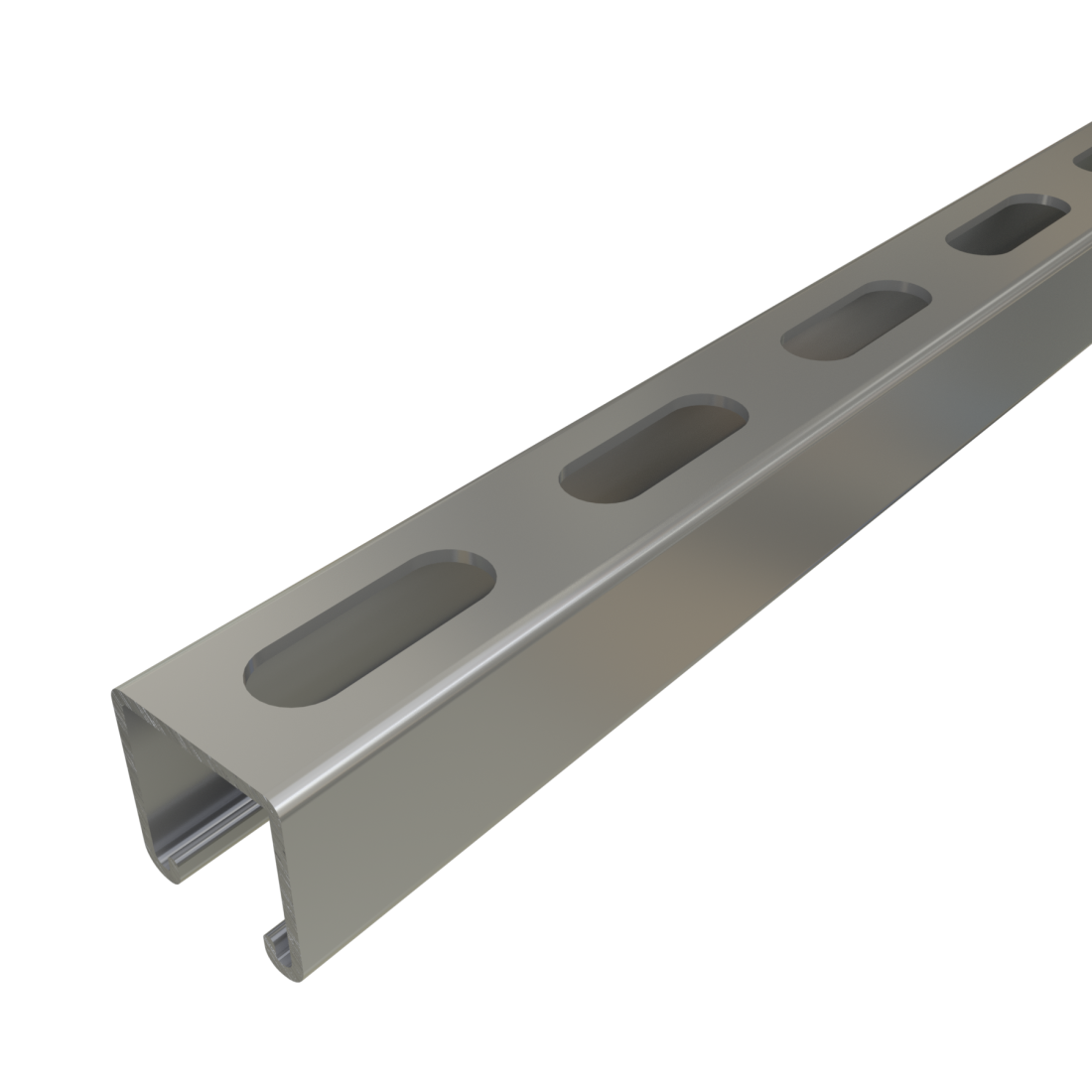

12 gauge strut channel with wide slots P1000WT has wide slots on the back side for use with 5/8” threaded rod and fasteners. The wider slots are an advantage during installation, eliminating the need for field drilling traditional slotted channel while retaining the adjustability of traditional slotted channel. This channel is commonly used for trapeze supports, anchoring to concrete, ceiling grids, pipe, conduit, duct and cable tray supports, racks, and other general framing. For application examples, refer to our Application Showcase.

Features:

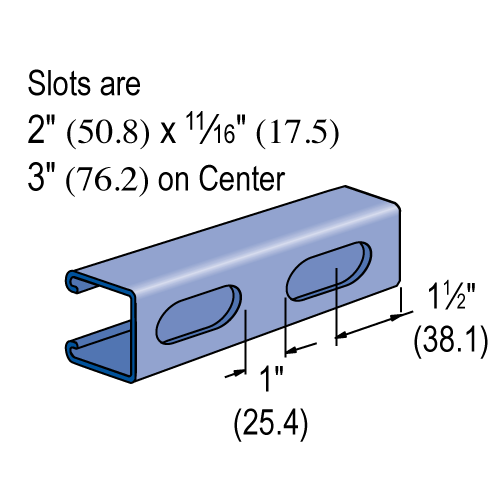

  • Product dimensions are 1 5/8" wide x 1 5/8" tall x 12 ga. thick; with wide slots.
  • The slots are 11/16” wide x 2” long, 3” on center and sized for use with 5/8" Threaded Rod or Fasteners
  • Our P1000WT is available in the following finishes: Pre-Galvanized (PG), Hot-Dip Galvanized (HG), Plain (PL), Green (GR), Zinc Dichromate (ZD), Aluminum (EA), and Stainless Steel (SS & ST).
  • OPM pre-approved for seismic applications
  • Slotted for 5/8" rod and fasteners
  • Made in the USA


Brands Available:

  • Unistrut



Beam Loading

Beam Loading - P1000WT
Span
(in)
Max Allowable Uniform Load
(lbs)
Deflection at Uniform Load
(in)
Uniform Loading at Deflection Lateral Bracing Reduction Factor
Span/180
(lbs)
Span/240
(lbs)
Span/360
(lbs)
24 1,437 0.06 1,437 1,437 1,437 1.00
36 961 0.13 961 961 765 0.94
48 723 0.22 723 646 425 0.88
60 578 0.35 553 408 272 0.82
72 476 0.50 383 289 187 0.78
84 408 0.68 281 213 136 0.75
96 357 0.89 213 162 111 0.71
108 323 1.14 170 128 85 0.69
120 289 1.40 136 102 68 0.66
144 238 2.00 94 68 51 0.61
168 204 2.72 68 51 34 0.55
192 179 3.55 51 43 NR 0.51
216 162 4.58 43 34 NR 0.47
240 145 5.62 34 NR NR 0.44
Note NR - Not Recommended
Refer to the General Specifications for loading information.

Column Loading

Column Loading - P1000WT
Unbraced Height
(in)
Allowable Load at Slot Face
(lbs)

Max Column Load Applied at C.G.
K=0.65 (lbs) K=0.80 (lbs) K=1.0 (lbs) K=1.2 (lbs)
24 3,550 10,740 9,890 8,770 7,740
36 3,190 8,910 7,740 6,390 5,310
48 2,770 7,260 6,010 4,690 3,800
60 2,380 5,910 4,690 3,630 2,960
72 2,080 4,840 3,800 2,960 2,400
84 1,860 4,040 3,200 2,480 1,980
96 1,670 3,480 2,750 2,110 1,660
108 1,510 3,050 2,400 1,810 KL/r>200
120 1,380 2,700 2,110 KL/r>200 KL/r>200
144 1,150 2,180 1,660 KL/r>200 KL/r>200
Refer to the General Specifications for loading information.

Elements of Section

Elements of Section - P1000WT
Area of Section 0.555 in2 (3.6 cm2)
Axis 1-1 Axix 2-2
Moment of Inertia (I) 0.185 in4 (7.7 cm4) 0.236 in4 (9.8 cm4)
Section Modulus (S) 0.202 in3 (3.3 cm3) 0.290 in3 (4.8 cm3)
Radius of Gyration (r) 0.577 in (1.5 cm) 0.651 in (1.7 cm)

General Specifications

Standard Lengths:

  • 10 feet:  10' or 10’ 1/8” (3.05m) ± 1/8" (3 mm)
  • 20 feet:  20' or 20’ 3/8” (6.11m) ± 1/8" (3 mm)

Special Lengths:

Curved Channel:

  • Many Unistrut channel sections can be supplied with a curve. Click here for our ordering form, specifications, and instructions.

Load Data:

  • All beam and column load data pertains to carbon steel and stainless steel channels.
  • Load tables apply only to UNISTRUT brand channel. Look for "UNISTRUT" on the product.
  • Load tables and charts are constructed to be in accordance with the SPECIFICATION FOR THE DESIGN OF COLD-FORMED STEEL STRUCTURAL MEMBERS 2007 EDITION published by the AMERICAN IRON AND STEEL INSTITUTE USING ASD METHOD.
  • Loads are based on 33 ksi steel cold formed to 42 ksi.
  • Safety Factor to Yield Strength is 1.67 for Beam Loads and 1.80 for Column Loads.
  • Beam loads are based on a simple beam and are given as a total uniform load (W) in pounds. For proper calculation procedures, refer to our Beam Load Calculation Guide under Resources.
  • For bearing loads, reference our Bearing Loads Page.

Materials & Finishes

Materials & Finishes - Standard:

  • Pregalvanized (PG):  Conforms to ASTM A653 SS GR 33, G90.
  • Unistrut Defender (DF):  Conforms to ASTM A1046 SS GR 33
  • Hot Dip Galvanized (HG):  Steel conforms to ASTM A1011 SS GR 33, Finish conforms to ASTM A123
  • Perma-Green (GR):  Steel conforms to ASTM A1011 SS GR 33, E-Coat finish
  • Perma-Gold (ZD):  Steel conforms to ASTM A1011 SS GR 33, Finish conforms to ASTM B633, Type II SC3
  • Plain (PL):  Conforms to ASTM A1011 SS GR 33
Materials & Finishes - Special Metals:
  • Stainless Steel, Type 304 (SS):  ASTM A240, Type 304 *
  • Stainless Steel, Type 316 (ST):  ASTM A240, Type 316 *
  • Aluminum (EA):  ASTM B221, Type 6063-T6 (Extruded) *

* These materials have different physical properties and performance characteristics. Please contact us for design support.



P1000WT CUT SHEET PDF DOWNLOAD
