MEDICAL EQUIPMENT SUPPORT STRUCTURES

We understand the medical equipment industry.

MEDICAL SUPPORT SYSTEMS BY UNISTRUT SERVICE COMPANY ENSURE PROJECT SUCCESS

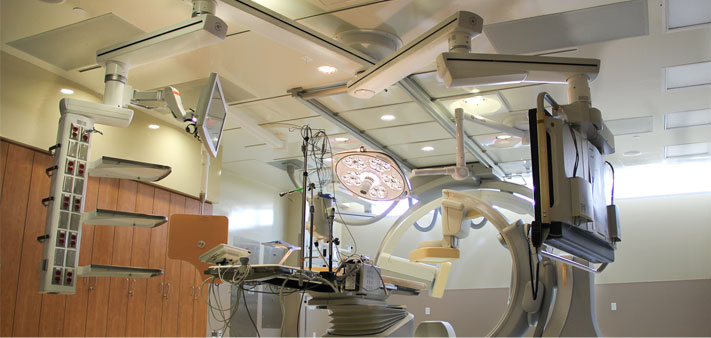

With today’s heavy medical equipment and increasingly stringent design criteria, Unistrut can design, fabricate and install overhead structural supports for demanding hospital, medical center, or out-patient clinic applications.

Whether it is as simple as an Injector in a CT room, or as complicated as a heavy service boom in an operating room that needs to comply with seismic regulations, we have the installation expertise needed to ensure your new or remodeled facility will meet your needs and requirements. Read our medical support installation guide with six important considerations for installing overhead medical support structures (PDF).

Detail Drawings for Medical Support Structure Standard

The tables below contain downloadable standard design detail drawings for typical Unistrut medical support structure applications.

Please Note: Drawings below are generic details to show design intent only. The drawings will help you gain a better understanding of engineered medical support structure design, but they are not intended for construction purposes because each system is application specific.


Unistrut Cath Lab Support Structure Standard Detail Drawings
*Drawings are generic details to show design intent only. Contact Unistrut Service Company for pricing on site specific drawings.
** There are no standard details for Cath Lab Supports attached to bar joists as bar joists are typically insufficient to handle the load.
Concrete Applications **Steel Beam Applications
Concrete Beams Concrete With Metal Deck Wide Flange Beam Structure
Ceiling Rails
Parallel to Beams
DWG
Ceiling Rails
Parallel to Metal Deck
DWG
Ceiling Rails
Parallel to Beams
DWG
Ceiling Rails Perpendicular to Beams
DWG
Ceiling Rails Perpendicular to Metal Deck
DWG
Ceiling Rails Perpendicular to Beams
DWG


Unistrut Exam Light Support Structure Standard Detail Drawings
*Drawings are generic details to show design intent only. Contact Unistrut Service Company for pricing on site specific drawings.
Joist Applications Concrete Applications
Bar Joist Structure
DWG
Concrete Beams
DWG
Flat Concrete Deck
DWG
Concrete With Metal Deck
DWG


*Unistrut Three and Four Rail Support Structures
Joist Applications Concrete Applications
Three Rail Bar Joist Structure
NA
Three Rail Concrete Deck Support Structure
DWG
Four Rail Bar Joist Structure
DWG
Four Rail Concrete Deck Support Structure
DWG


*Unistrut Injector, Monitor, and Surgical Light Support Structures
*Drawings are generic details to show design intent only. Contact Unistrut Service Company for pricing on site specific drawings.
Joist Applications Concrete Applications
Bar Joist Structure
DWG
Concrete Beams
DWG
Flat Concrete Deck
DWG
Concrete With Metal Deck
DWG
