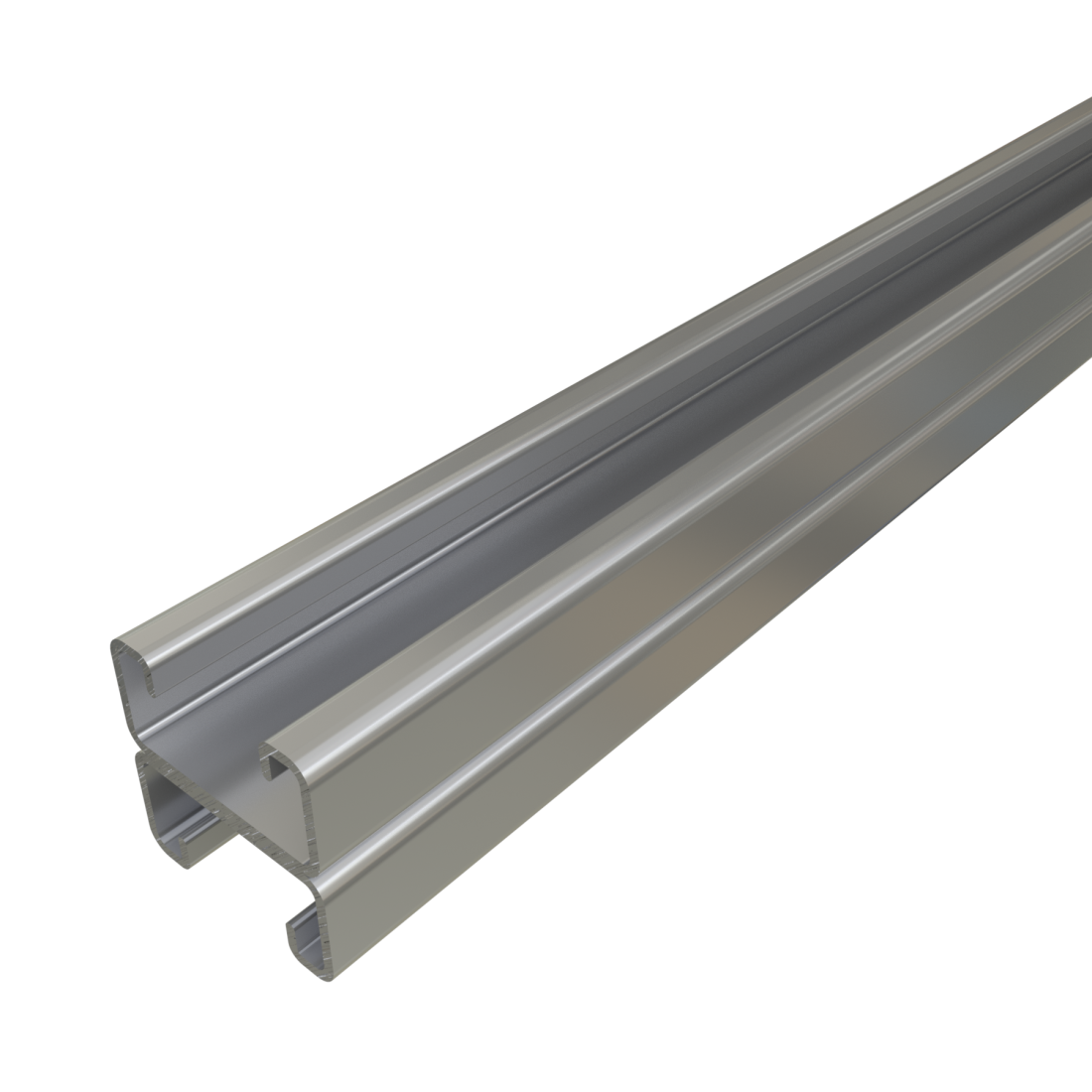

Unistrut P4101 - 1-5/8" x 1-5/8", 14 Gauge Back-to-Back Metal Framing Strut, Solid
Unistrut P4101 - 1-5/8" x 1-5/8", 14 Gauge Back-to-Back Metal Framing Strut, Solid
Unistrut P4101 - 1-5/8" x 1-5/8", 14 Gauge Back-to-Back Metal Framing Strut, Solid

Unistrut

Unistrut P4101 - 1-5/8" x 1-5/8", 14 Gauge Back-to-Back Metal Framing Strut, Solid

$169.19
Length:10'
Finish:Perma-Green® III
Quantity:

CUT TO A CUSTOM LENGTH? MAY SAVE ON SHIPPING

HOW WOULD YOU LIKE IT CUT?

Some cutting jobs allow us to use ground shipping rather than LTL, yielding significant freight savings. A customer service associate will contact you to confirm the cut list and shipping and freight costs prior to finalizing your order. eg - 4 cuts per stick x 5ft per section

Unistrut's 14 Gauge Welded Strut Channel P4101 (back-to-back solid) is commonly used for trapeze supports, seismic bracing, ceiling grids, pipe, conduit, duct and cable tray supports, racks, and other general framing. For application examples, refer to our Application Showcase.


Features:

  • Product dimensions are 1 5/8" wide x 1 5/8" tall x 14 ga. thick, solid.
  • Punched holes are also available for ease of installation
  • 2-sided attachment
  • Our P4101 is available in the following finishes: Pre-Galvanized (PG), Unistrut Defender (DF), Hot-Dip Galvanized (HG), Plain (PL), Green (GR), Zinc Dichromate (ZD), Stainless Steel (SS or ST).
  • Made in the USA



Beam Loading

Beam Loading - P4101
Span
(in)		 Max Allow. Uniform Load
(lbs)		 Deflection at Uniform Load
(in)		 Uniform Loading at Deflection Lateral Bracing Reduction Factor
Span/180
(lbs)		 Span/240
(lbs)		 Span/360
(lbs)
24 * 1,090 0.06 * 1,090 * 1,090 * 1,090 1.00
36 800 0.14 800 800 570 1.00
48 600 0.25 600 480 320 1.00
60 480 0.39 410 310 200 0.96
72 400 0.57 280 210 140 0.92
84 340 0.76 210 160 100 0.89
96 300 1.00 160 120 80 0.85
108 270 1.29 130 90 60 0.81
120 240 1.57 100 80 50 0.78
144 200 2.26 70 50 40 0.71
168 170 3.05 50 40 30 0.64
192 150 4.02 40 NR NR 0.57
216 130 4.96 NR NR NR 0.50
240 120 6.28 NR NR NR 0.45
Note NR - Not Recommended
Note *Load limited by weld shear
Refer to the General Specifications for loading information.


Column Loading

Column Loading - P4101
Unbraced
Height
(in)		 Allowable Load at Slot Face
(lbs)		 Max Column Load Applied at C.G.
K=0.65 (lbs) K=0.80 (lbs) K=1.0 (lbs) K=1.2 (lbs)
24 3,240 12,370 11,950 11,370 10,540
36 3,120 11,470 10,540 9,160 7,720
48 2,940 10,090 8,680 6,770 4,980
60 2,680 8,560 6,770 4,590 3,190
72 2,310 7,010 4,980 3,190 2,220
84 1,950 5,530 3,660 2,340 KL/r>200
96 1,650 4,250 2,800 KL/r>200 KL/r>200
108 1,410 3,360 2,220 KL/r>200 KL/r>200
Refer to the General Specifications for loading information.


Elements of Section

Elements of Section - P4101
Area of Section 0.579 in2 (3.7 cm2)
Axis 1-1 Axix 2-2
Moment of Inertia (I) 0.117 in4 (4.9 cm4) 0.214 in4 (8.9 cm4)
Section Modulus (S) 0.143 in3 (2.3 cm3) 0.264 in3 (4.3 cm3)
Radius of Gyration (r) 0.449 in (1.1 cm) 0.608 in (1.5 cm)


General Specifications

Standard Lengths:

  • 10 feet:  10' or 10’ 1/8” (3.05m) ± 1/8" (3 mm)
  • 20 feet:  20' or 20’ 3/8” (6.11m) ± 1/8" (3 mm)

Special Lengths:

Curved Channel:

  • Many Unistrut channel sections can be supplied with a curve. Click here for our ordering form, specifications, and instructions.

Load Data:

  • All beam and column load data pertains to carbon steel and stainless steel channels.
  • Load tables apply only to UNISTRUT brand channel. Look for "UNISTRUT" on the product.
  • Load tables and charts are constructed to be in accordance with the SPECIFICATION FOR THE DESIGN OF COLD-FORMED STEEL STRUCTURAL MEMBERS 2007 EDITION published by the AMERICAN IRON AND STEEL INSTITUTE USING ASD METHOD.
  • Loads are based on 33 ksi steel cold formed to 42 ksi.
  • Safety Factor to Yield Strength is 1.67 for Beam Loads and 1.80 for Column Loads.
  • Beam loads are based on a simple beam and are given as a total uniform load (W) in pounds. For proper calculation procedures, refer to our Beam Load Calculation Guide under Resources.
  • For bearing loads, reference our bearing loads page.

Welds:

  • Welded channels are spot welded 2" (51 mm) or 3" (76 mm) on-center.



Materials & Finishes

Materials & Finishes - Standard:

  • Pregalvanized (PG):  Conforms to ASTM A653 SS GR 33, G90.
  • Unistrut Defender (DF):  Conforms to ASTM A1046 SS GR 33
  • Hot Dip Galvanized (HG):  Steel conforms to ASTM A1011 SS GR 33, Finish conforms to ASTM A123
  • Perma-Green (GR):  Steel conforms to ASTM A1011 SS GR 33, E-Coat finish
  • Perma-Gold (ZD):  Steel conforms to ASTM A1011 SS GR 33, Finish conforms to ASTM B633, Type II SC3
  • Plain (PL):  Conforms to ASTM A1011 SS GR 33
Materials & Finishes - Special Metals:
  • Stainless Steel, Type 304 (SS):  ASTM A240, Type 304 *
  • Stainless Steel, Type 316 (ST):  ASTM A240, Type 316 *
  • Aluminum (EA):  ASTM B221, Type 6063-T6 (Extruded) *

* These materials have different physical properties and performance characteristics. Please contact us for design support.



P4101 CUT SHEET PDF DOWNLOAD
